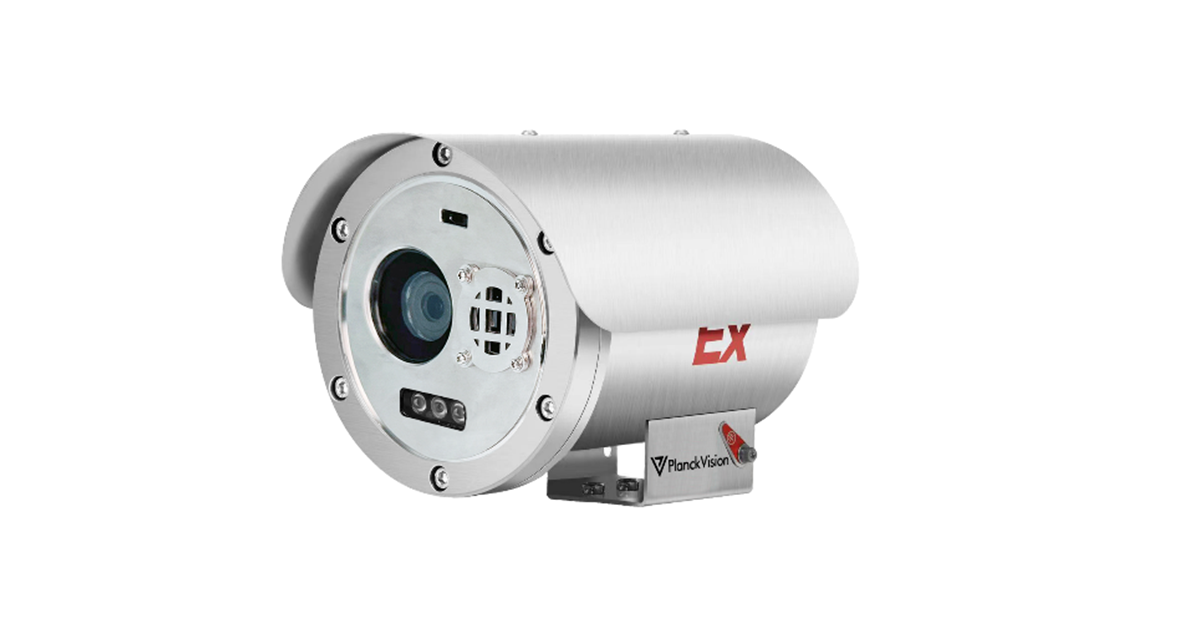

TNC-EX
TNC100/200-EX combines visible and thermal cameras in a rugged explosion proof housing suitable for dangerous environments. The 200EX series offers high 640 x 512 thermal resolution and industry leading temperature precision with low NETD for crisp thermal imagery. The 200EX series is offered with a wide selection of lens options to tailor this camera to your monitoring solution. Option for extended temperature measurement range to 1200C. The 100EX option has 256 x 192 thermal resolution and a versitale 57 degree field of fiew.
Features
- Dual thermal/visible network cameras with integrated web interface
- Offers fusion of thermal-visible images with 18 thermal color palettes
- Full-scene temperature monitoring with up to 12 user defined local regions
- Intelligent high/low temperature tracking, comparative measurements, and fire detection
- Alarm condition detection, relay control, and network broadcasting features
- PlanckView camera management software and full function SDK available
Specifications
Thermal resolution 640 x 512 or 256 x 192 Visible resolution 1920 x 1080 Lens option Multiple standard focal length lenses are available. Measurement range High Gain: -20C to 150C; Low Gain: 0C to 450C
Extended range option: -20C to 1200C
Accuracy ±2C or ±2% (whichever is greater)
Storage TF Card 1T Front-end storage for image and video capture (optional)
Ex housing For hazerdous area monitoring
Network Provides support for multiple network protocols.
Supports PAL and NTSC video formats and image flipping for versatile camera mounting Datasheet and User manuals Download
Software Development Kits available, send inquires Here
